Bow Thruster Inspection and Entanglement Removal at Siam Commercial Seaport
- MaxiDive
- 3 minutes ago
- 3 min read
Bow thruster inspection and entanglement removal at Siam Commercial Seaport are important underwater services for commercial vessels operating in Thailand. Mooring ropes, fishing lines, nets and other floating debris can become caught around underwater vessel components, creating operational risks and requiring prompt commercial diving support.
MaxiDive provides underwater inspection and entanglement removal services for vessels at Thai ports and anchorages, helping shipowners, managers and technical teams assess underwater components, remove obstructions and document the condition of critical areas below the waterline.
Bow Thruster Inspection and Entanglement Removal at Siam Commercial Seaport: Project Scope

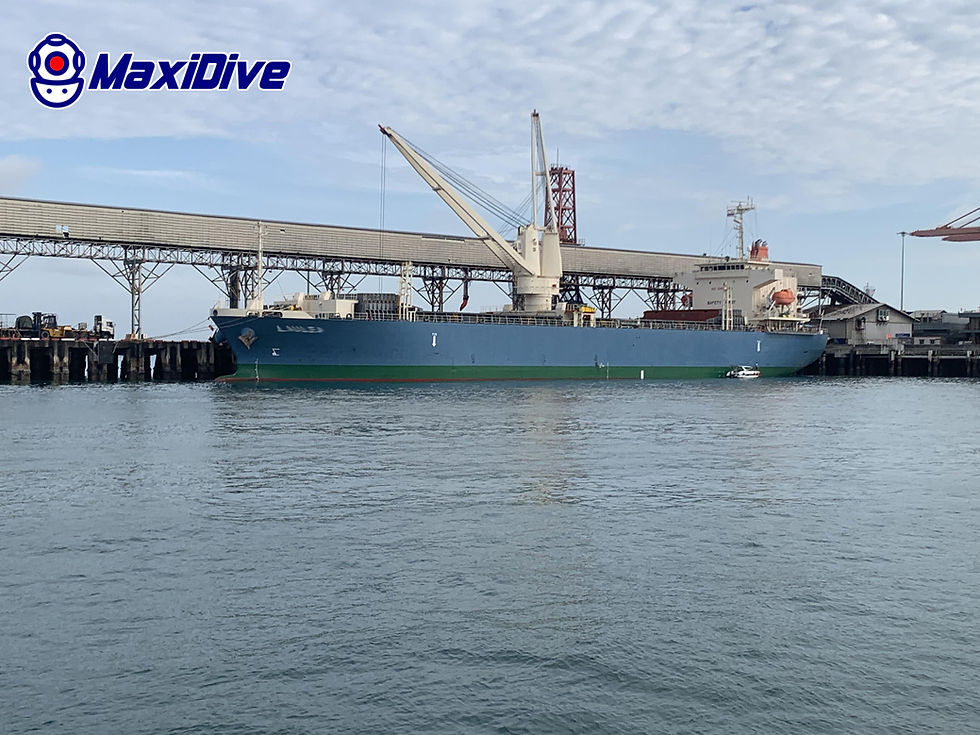

During this underwater service operation, MaxiDive was requested to carry out bow thruster inspection and entanglement removal for a commercial vessel alongside Siam Commercial Seaport.
The scope of work included underwater inspection of the bow thruster area, identification of rope entanglement, removal of the obstruction using hand tools and camera systems, and visual confirmation of the bow thruster condition after removal.
The inspection focused on key underwater areas including:
Bow thruster tunnel
Bow thruster gratings
Bow thruster surrounding structure
Hull plating near the bow area
Sea chest gratings
Bilge keels
ICCP components
Drain plugs
Propeller assembly
Rudder assembly
Mooring Rope Entanglement Around the Bow Thruster
The underwater inspection found significant mooring rope entanglement in the bow thruster area. Rope entanglement can restrict thruster operation, increase mechanical load, affect manoeuvring performance and create potential risk for underwater components.
MaxiDive divers removed the entangled rope and carried out a follow-up inspection of the bow thruster area. After the rope was removed, no visible damage to the bow thruster and no leakage were reported.
The bow thruster gratings were found secure and fastened in place, with no movement of the gratings noted. The bow thruster tunnel, gratings and transmission top coat were also documented as being in good condition.
Hull and Appendage Condition
The vessel’s underwater hull areas showed marine growth typical for vessels operating in warm tropical waters. Soft and hard marine growth, including algae, slime and barnacles, was observed on hull plating and underwater appendages.
The flat bottom showed scattered hard marine growth, while the bow area showed coating wear consistent with anchor-chain abrasion. Where visible, the paint system was generally found in good condition, with some areas of bare steel noted.
No concave weld seams, structural damage or major underwater anomalies were reported during the inspection.
The appendage inspection also included sea chest gratings, bilge keels, discharges, ICCP components and drain plugs. Sea chest and bilge keel areas were noted with marine growth coverage, while the sea chest gratings were found secure with no movement, contact damage or abnormality. Visible drain plugs were reported free from leakage.
Propeller and Rudder Inspection
The propeller assembly was also documented during the underwater inspection. Marine growth was observed on propeller blades, hub and boss, while the propeller surface roughness was measured at grade “E” on the Rupert scale. The stern tube area was found free from structural anomalies.
The rudder assembly showed light coverage by slime and barnacles. The rudder paint coat was reported in fair condition, with areas of missing coating down to bare steel on the leading edge and upper plate. The rudder hatch was found secure in place, and the drain plug was secure with no leakage reported.
These observations help vessel operators understand the underwater condition of key components and plan further cleaning, polishing or maintenance if required.
Why Entanglement Removal Matters
Underwater entanglement is a common operational risk for vessels working in busy ports, anchorages and coastal waters. Mooring ropes, floating debris and fishing gear can become trapped around thrusters, propellers, rudders or other underwater components.
Prompt inspection and removal help vessel operators:
Reduce risk to bow thruster operation
Prevent further mechanical stress
Confirm whether underwater components are damaged
Support safe vessel manoeuvring
Avoid unnecessary delay
Receive photo and video documentation for technical records
For vessels calling at Thai ports, having access to experienced commercial divers is essential when underwater entanglement is suspected.
MaxiDive Commercial Diving Support in Thailand
MaxiDive provides commercial diving and underwater ship maintenance services across Thailand, including bow thruster inspection, rope and debris removal, propeller inspection, hull cleaning, sea chest cleaning, underwater CCTV inspection, underwater blanking, plugging and emergency underwater repair support.
With experienced dive teams, camera systems, hand tools and professional reporting, MaxiDive supports shipowners, managers, port operators and technical superintendents with reliable underwater solutions at Thai ports and anchorages.
Conclusion
This bow thruster inspection and entanglement removal operation at Siam Commercial Seaport demonstrates the importance of timely underwater response when rope or debris becomes caught around vessel components.
MaxiDive removed the mooring rope obstruction, inspected the bow thruster area and documented the condition of key underwater components. The operation helped support safer vessel operation, clearer technical assessment and reliable underwater maintenance planning.
